Product Description

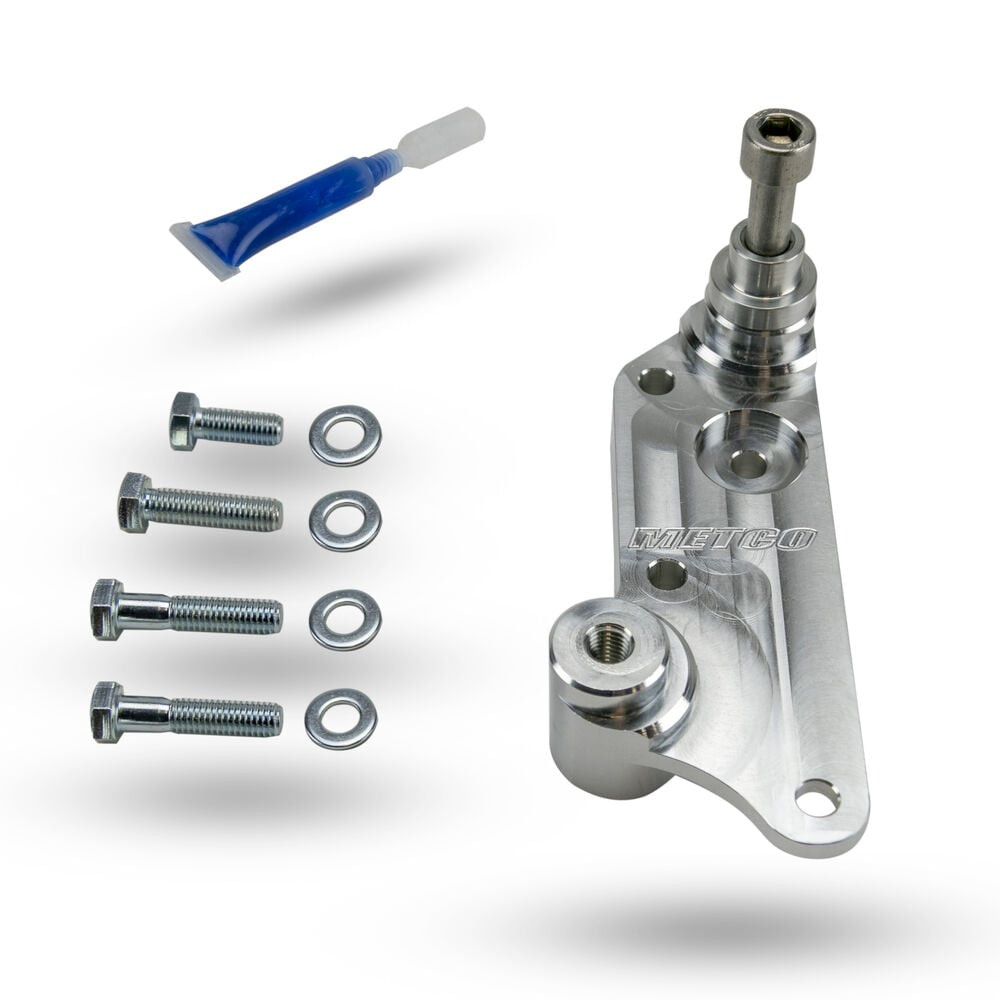

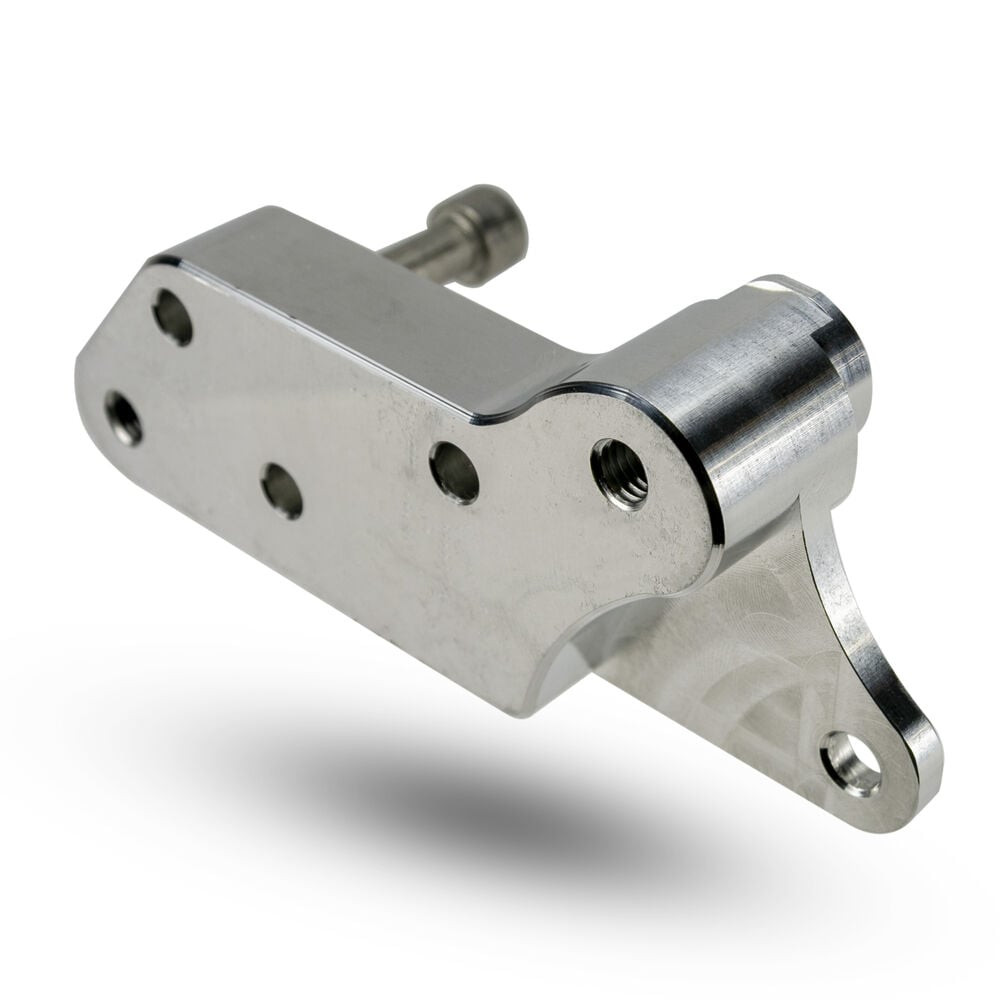

Idler Pulley Relocation Bracket
2009 & Newer Cadillac CTS-V, 2012 & Newer Camaro ZL1
*** ***
This precision-machined idler relocation bracket is designed specifically for the GM LSA application. The bracket installs as a direct replacement for the original, but moves the Metco 50mm crank idler pulley (bottom) away from the crank pulley to allow for drive rings larger than 9.55". Another important benefit is that the 100mm supercharger idler pulley's position (top) is optimized to improve belt wrap at the supercharger pulley, which is crucial in applications using a smaller-than-stock supercharger pulley.
No modifications are necessary for installation, and all necessary fasteners are included.
As shipped, the kit includes the bracket and fasteners only. The bracket is intended for use with our 50mm crank idler pulley, and if your vehicle is not already equipped with this pulley, please select the appropriate option below. If the supercharger pulley has been changed to an overdrive (smaller) unit, the oversize 100mm supercharger idler (MIP-100V) should be added. Please choose from the options below.
Important Note for ZL1 Installations: In some instances, the tensioner pulley on the accessory drive will interfere with the installation of this bracket. The solution is to swap the tensioner pulley with the smaller diameter idler on the driver's side of the engine. Installing this smaller pulley on the tensioner arm provides the necessary clearance for the bracket, and the installation of the tensioner pulley on the driver's side of the engine allows the retention of the existing accessory drive belt.
